How to Build Docker Image : Comprehensive Beginners Guide

In this article, you will learn to build a Docker image from scratch and deploy and run your application as a Docker container using Dockerfile

As you know Docker is a tool for packaging, deploying, and running applications in lightweight containers. If you want to learn about the basics of Docker, refer to the Docker explained blog.

If you don’t have Docker installation, check out the docker installation guide.

Dockerfile Explained

The very basic building block of a Docker image is a Dockerfile

A Dockerfile is a simple text file with instructions and arguments. Docker can build images automatically by reading the instructions given in a Dockerfile.

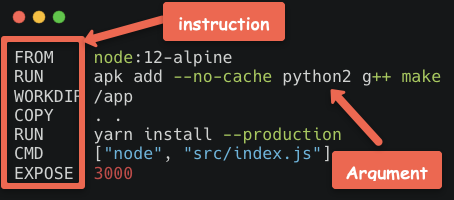

In a Dockerfile everything on the left is INSTRUCTION, and on the right is an ARGUMENT to those instructions. Remember that the file name is "Dockerfile" without any extension.

The following table contains the important Dockerfile instructions and their explanation.

Dockerfile Instruction	Explanation
FROM	To specify the base image that can be pulled from a container registry( Docker hub, GCR, Quay, ECR, etc.)
RUN	Executes commands during the image build process.
ENV	Sets environment variables inside the image. It will be available during build time as well as in a running container. If you want to set only build-time variables, use ARG instruction.
COPY	Copies local files and directories to the image
EXPOSE	Specifies the port to be exposed for the Docker container.
ADD	It is a more feature-rich version of the COPY instruction. It also allows copying from the URL that is the source and tar file auto-extraction into the image. However, usage of COPY command is recommended over ADD. If you want to download remote files, use curl or get using RUN.
WORKDIR	Sets the current working directory. You can reuse this instruction in a Dockerfile to set a different working directory. If you set WORKDIR, instructions like RUN, CMD, ADD, COPY, or ENTRYPOINT gets executed in that directory.
VOLUME	It is used to create or mount the volume to the Docker container
USER	Sets the user name and UID when running the container. You can use this instruction to set a non-root user of the container.
LABEL	It is used to specify metadata information of Docker image
ARG	Is used to set build-time variables with key and value. the ARG variables will not be available when the container is running. If you want to persist a variable on a running container, use ENV.
SHELL	This instruction is used to set shell options and default shell for the RUN, CMD, and ENTRYPOINT instructions that follow it.
CMD	It is used to execute a command in a running container. There can be only one CMD, if multiple CMDs then it only applies to the last one. It can be overridden from the Docker CLI.
ENTRYPOINT	Specifies the commands that will execute when the Docker container starts. If you don’t specify any ENTRYPOINT, it defaults to /bin/sh -c. You can also override ENTRYPOINT using the --entrypoint flag using CLI. Please refer CMD vs ENTRYPOINT for more information.

Build Docker Image Using Dockerfile

In this section, you will learn to build a docker image using a real-world example. We will create an Nginx docker image from scratch with a custom index page.

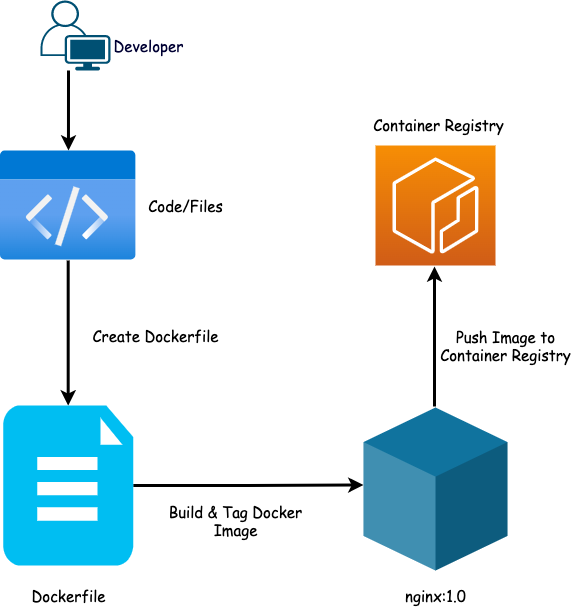

The following image shows the high-level workflow of the image build process.

Follow the steps given below to build a docker image.

Github Repo: The Dockerfile and configs used for this article is hosted on a Docker image examples Github repo. You can clone the repo for reference.

Step 1: Create the required Files and folders

Create a folder named nginx-image and create a folder named files

mkdir nginx-image && cd nginx-image
mkdir files

Create a .dockerignore file

touch .dockerignore

Step 2: Create a sample HTML file and config file

When you build a docker image for real-time projects, it contains code or application config files.

For demo purposes, we will create a simple HTML file & config file as our app code and package it using Docker. This is a simple index.html file. You can create your own if you want.

cd into the files folder

cd files

Create a index.html file

vi index.html

Copy the following contents to the index.html and save the file.

<html>
  <head>
    <title>Dockerfile</title>
  </head>
  <body>
    <div class="container">
      <h1>My App</h1>
      <h2>This is my first app</h2>
      <p>Hello everyone, This is running via Docker container</p>
    </div>
  </body>
</html>

Create a file name default

vi default

Copy the following contents to the default file.

server {
    listen 80 default_server;
    listen [::]:80 default_server;

    root /usr/share/nginx/html;
    index index.html index.htm;

    server_name _;
    location / {
        try_files $uri $uri/ =404;
    }
}

Step 3: Choose a Base Image

We use FROM command in the Dockerfile which instructs Docker to create an image based on an image that is available on the Docker hub or any container registry configured with Docker. We call it a base image.

It is similar to how we create Virtual machines on the cloud from a virtual machine image.

Choosing a base image depends on our application and os platform of choice. In our case, we will pick the ubuntu:18.04 base image.

Note: Always use official/org approved base images for your applications to avoid potential vulnerabilities. Towards the end, we have added all the public registries that has verified container base images. Also, when it comes to production use cases, always use a minimal base image like alpine (just 5 Mib) or distroless images. Distroless alpine is just 2 MiB

Step 3: Create the Dockerfile

Create a Dockerfile in the nginx-image folder.

vi Dockerfile

Here’s the simple Dockerfile content for our use case. Add the content to the Dockerfile.

FROM ubuntu:18.04
LABEL maintainer="[email protected]"
RUN  apt-get -y update && apt-get -y install nginx
COPY files/default /etc/nginx/sites-available/default
COPY files/index.html /usr/share/nginx/html/index.html
EXPOSE 80
CMD ["/usr/sbin/nginx", "-g", "daemon off;"]

Here’s the explanation of each step:

Step 4: Build your first Docker Image

The final folder & file structure would look like the following.

nginx-image
├── Dockerfile
└── files
    ├── default
    └── index.html

Now, we will build our image using the Docker command. The below command will build the image using Dockerfile from the same directory.

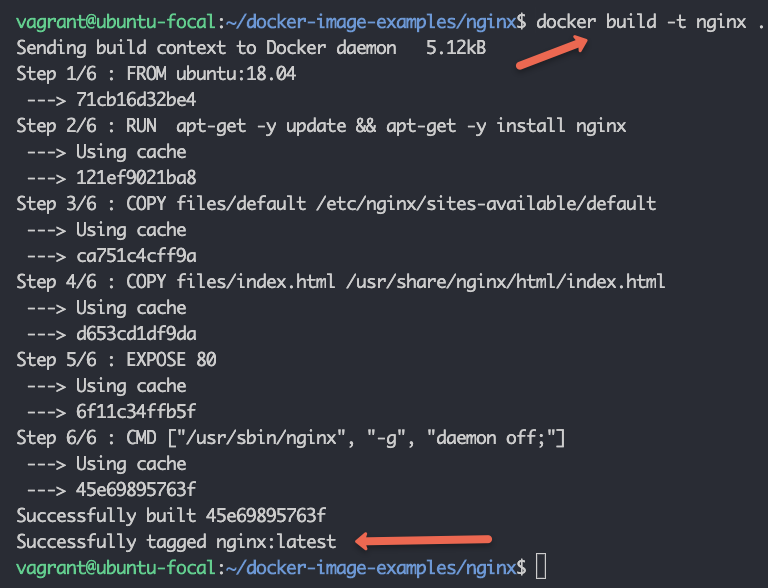

docker build -t nginx:1.0 .

1. -t is for tagging the image.
2. nginx is the name of the image.
3. 1.0 is the tag name. If you don’t add any tag, it defaults to the tag named latest.
4. . (dot) at the end means, we are referring to the Dockerfile location as the docker build context. That is our current directory.

If the Dockerfile is in another folder then you need to specify it explicitly.

docker build -t nginx /path/to/folder

Now, we can list the images by using this command.

docker images

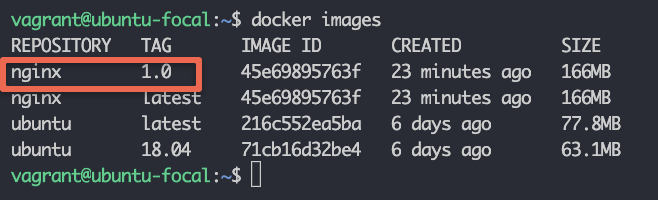

We can see the tag is 1.0 here. If we want to put a specific tag we can put it like this image-name:<tag>. If you don’t specify any tag, it defaults to latest tag.

docker build -t nginx:2.0 .

A single image can have multiple tags. There are two approaches we generally follow to tag the image:

1. Stable Tags – We can continue to pull a specific tag, which continues to get updates. Our tags are always constant, but the image content is changed.
2. Unique Tags – We use a different and unique tag for each image. There are different ways to provide unique tags for example date-time stamp, build number, commit ID, etc.

Note: When it comes to production, a recommended docker image tagging method is semantic versioning (Semver).

Docker caches the build steps. So if we build the image again the process will move a little faster. For example, it will not download the Ubuntu 18.04 image again.

Using large images slows down the build and deployment time of containers. If you want to learn more about optimizing Docker images, check out reduce docker image guide.

Step 5: Test the Docker Image

Now after building the image, we will run the Docker image. The command will be

docker run -d -p 9090:80 --name webserver nginx:1.0

Here,

1. -d flag is for running the container in detached mode
2. -p flag for the port number, the format is local-port:container-port
3. --name for the container name, webserver in our case

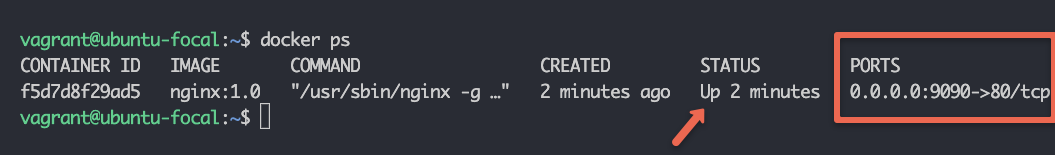

We can check the container by using the below command

docker ps

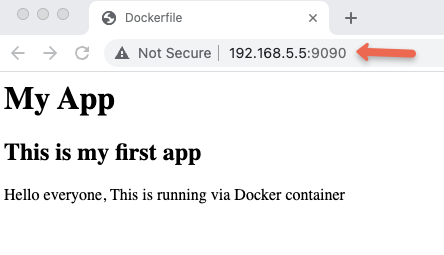

Now in the browser, if you go to http://<host-ip>:9090, you can see the index page which displays the content in the custom HTML page we added to the docker image.

Push Docker Image To Docker Hub

To push our Docker image to the Docker hub, we need to create an account in the Docker hub.

Post that, execute the below command to log in from the terminal. It will ask for a username and password. Provide the Docker hub credentials.

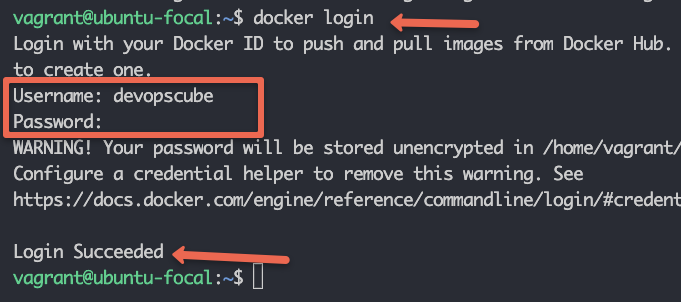

docker login

After login, we now need to tag our image with the docker username as shown below.

docker tag nginx:1.0 <username>/<image-name>:tag

For example, here devopscube is the dockerhub username.

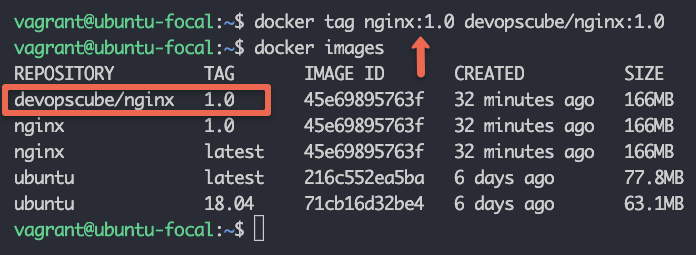

 docker tag nginx:1.0 devopscube/nginx:1.0

Run docker images command again and check the tagged image will be there.

Now we can push our images to the Docker hub using the below command.

docker push devopscube/nginx:1.0

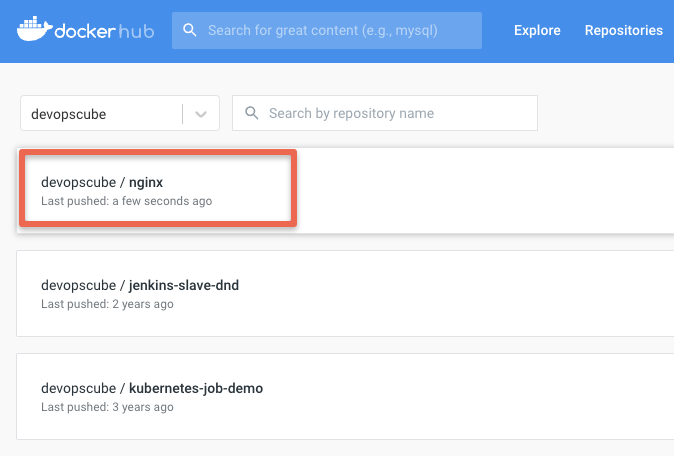

Now you can check this image will be available in your Docker Hub account.

Using heredoc With Dockerfile

Dockerfile also supports heredoc syntax. If we have multiple RUN commands then we can use heredoc syntax as shown below.

RUN <<EOF
apt-get update
apt-get upgrade -y
apt-get install -y nginx
EOF

Also, let’s say you want to execute a Python script from a Dockerfile, you can use the following syntax.

RUN python3 <<EOF
with open("/hello", "w") as f:
    print("Hello", file=f)
    print("World", file=f)
EOF

You can also use the heredoc syntax to create a file. Here is an Nginx example.

FROM nginx

COPY <<EOF /usr/share/nginx/html/index.html
<html>
  <head>
    <title>Dockerfile</title>
  </head>
  <body>
    <div class="container">
      <h1>My App</h1>
      <h2>This is my first app</h2>
      <p>Hello everyone, This is running via Docker container</p>
    </div>
  </body>
</html>
EOF

Dockerfile Best Practices

Some of the Dockerfile practices that we should follow:

1. Use a .dockerignore file to exclude unnecessary files and directories to increase the build’s performance.
2. Use trusted base images only and keep updating the images periodically.
3. Each instruction in the Dockerfile adds an extra layer to the Docker image. Minimize the number of layers by consolidating the instructions to increase the build’s performance and time.
4. Run as a Non-Root User to avoid security breaches.
5. Keep the image small: Reduce the image size for faster deployment and avoid installing unnecessary tools in your image. Use minimal images to reduce the attack surface.
6. Use specific tags over the latest tag for the image to avoid breaking changes over time.
7. Avoid using multiple RUN commands as it creates multiple cacheable layers which will affect the efficiency of the build process.
8. Never share or copy the application credentials or any sensitive information in the Dockerfile. If you use it, add it to .dockerignore
9. Use EXPOSE and ENV commands as late as possible in Dockerfile.
10. Use a linter: Use a linter like hadolint to check your Dockerfile for common issues and best practices.
11. Use a single process per container: Each container should run a single process. This makes it easier to manage and monitor containers and helps to keep containers lightweight.
12. Use multi-stage builds: Use multi-stage builds to create smaller and more efficient images.

Possible Docker Build Issues

1. If there is a syntax error or an invalid argument in Dockerfile, docker build command will fail with an error message. Correct the syntax to resolve this.
2. Always try to give the container name using docker run command otherwise Docker automatically assigns a name to the container and it might lead to several problems.
3. Sometimes we get Bind for 0.0.0.0.:8080 failed: port is already allocated error, this is because some other software/service is using these ports. We can check the listening ports using netstat or ss command. Use a different port to resolve this or stop that service.
4. Sometimes Docker fails to download the packages with this error Failed to download package <package-name>. This is because the container may not be able to access the internet or other dependencies issues.

Docker Image Registries

As mentioned in Step 1, you should always choose verified official base images for your application.

The following table has the list of publicly available container registries where you can find officially verified base images and application images.

Registry	Base Images
Docker	Docker hub base images
Google Cloud	Distroless base images
AWS	ECR public registry
Redhat Quay	Quay Registry

Docker Image vs. Containers

A Docker image is a snapshot of the file system and application dependencies. It is an executable package of software that includes everything needed like application code, libraries, tools, dependencies, and other files to run an application. You can compare it to a VM golden image.

A Docker image is organized in read-only layers stacked on top of each other.

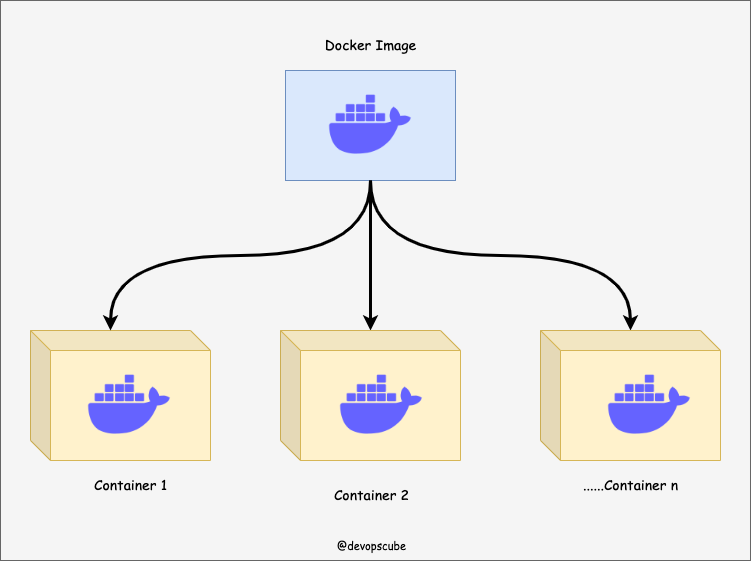

A Docker container is a running instance of a Docker image. We create VMs from VM images. Similarly way we create a container from a container image. When you create a container from a Docker image, you are creating a writable layer on top of the existing image layers.

The key difference between a Docker image and a container is the writable layer on top of the image. This means, that if you have five containers running from an image, all the containers share the same read-only layers from the image and only the top writable layer is different for all five containers.

This means, that when you delete the container, the writable layer gets deleted.

Images can exist without containers, whereas a container needs an image to run. We can create multiple containers from the same image, each with its own unique data and state.

Docker Image Build FAQs

Whats Next

In the same way, you can try building more Docker images.

For example, you can try Dockerizing a Java application and run it.

Further you can dockerize the following applictions to gain more knowledge.

1. Python
2. NodeJS
3. Django
4. FastAPI

Conclusion

In this article, we discussed how we can build a Docker Image and run our app as a Docker container using a Dockerfile.

We discussed Dockerfile in detail and went through some good practices to write it.

As a DevOps engineer, it is important to have a solid understanding of Docker best practices before implementing them in a project. Additionally, to learn Kubernetes, you need to understand the workflow of building container images.

Podman is another container tool using which you can manage containers. To know more, check out the podman tutorial.
