Iptables Tutorial for Beginners

For every system, the firewall is a must have for security. In Linux systems, a firewall can be implemented using iptables command line utility. It is very powerful for setting firewall rules for enhanced security. Under the hood, iptables interact with packet filtering hooks of the kernel’s networking stack known as Netfilter (http://www.netfilter.org/) framework. It can manage packet filtering  and NAT  rules.

Note: In practice iptables handles IPv4 rules and ip6tables http://linux.die.net/man/8/ip6tables handles IPv6 rules.

Getting Started With iptables

iptables utility uses table concept to organize the firewall rules. Tables, in turn, contains a set of chains. And chains contain a set of rules.

There are four types of tables.

1. Filter table
2. NAT table
3. Mangle table
4. Raw table
5. Security table

Filter table

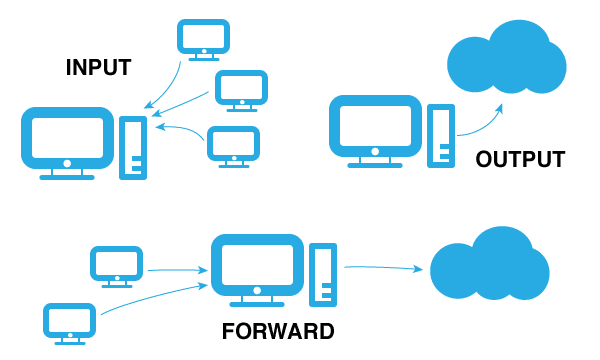

It is the default iptable. This table decides if a packet should be allowed to its destination or not. A typical packet which reached filter table will go through any one of the following three chains.

1. Input chain – If a packets destination to your server, it goes through INPUT chain.
2. Output – If the packets source is your server, then it goes through Output chain.
3. Forward – If the packets, neither the source nor the destination belongs to your server, then it goes through the forward chain. It means the packet from another NIC of your server is being routed. This normally happens when your Linux system acts as a router.

iptables tutorial for beginners

You can view the filter table in your system using the following command.

sudo iptables -t filter --list

NAT table

NAT  table contains the following chains.

READ  Git Basics Every Developer and Administrator Should Know

1. PREROUTING chain – This chain is mainly for DNAT (Destination NAT)

2. POSTROUTING chain – This chain is mainly for SNAT (Source NAT)

Note: Read about DNAT and SNAT with the example from here .

3. OUTPUT chain – If the packets get delivered locally, this chain is used.

You can view the NAT table using the following command.

sudo iptables -t filter --list

Mangle table

This table is primarily used for altering the IP headers. It has the following chains.

1. PREROUTING
2. OUTPUT
3. FORWARD
4. INPUT
5. POSTROUTING

View the mangle table list using the following command.

sudo iptables -t mangle --list

Raw table

This table provides a mechanism to mark packets for opting out of connection tracking. http://people.netfilter.org/pablo/docs/login.pdf

Mangle table has the following chains

1. PREROUTING
2. OUTPUT chain

View the raw table list using the following command.

sudo iptables -t raw --list

Security table

This table is related SELINUX. It sets SELINUX context on packets. To be more specific, it is used for Mandatory Access Control https://en.wikipedia.org/wiki/Mandatory_access_control

View the security table list using the following command.

sudo iptables -t security --list
