How to Setup Minikube on MAC M1/M2

Minikube on MAC M1/M2

This blog contains the guide to setting up a working Minikube cluster on MAC M1/M2 arm64 systems using the Qemu emulator as the backend driver.

Qemu emulator is the best option to run a Kubernetes Cluster using minikube on MAC arm64-based systems without any issues. All other setups like Docker, Podman, and Virtualbox run into some sort of issue.

Setup Minikube on MAC M1/M2

Step 1: Install Qemu

Install the Qemu emulator using the following command.

brew install qemu

Step 2: Setup Qemu socket_vvmnet

For minikube service URLs to work, you need to start the socket_vmnet service

brew install socket_vmnet
brew tap homebrew/services
HOMEBREW=$(which brew) && sudo ${HOMEBREW} services start socket_vmnet

Step 3: Install minikube

brew install minikube

Step 4: Start Minikube with the Qemu driver and socket_vmnet

minikube start --driver qemu --network socket_vmnet

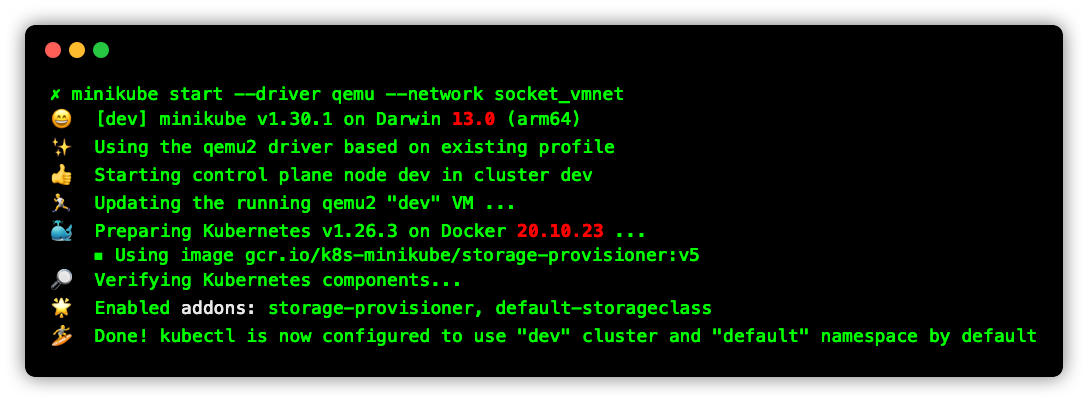

On successful execution, you should see the below output.

Validate Minikube Setup

Note: Ensure you have kubectl installed on your workstation.

To validate the setup let’s deploy a sample nginx application with a NodePort service. So that we can validate pod deployment as well as network access using the NodePort service.

Execute the following kubernetes manifest to deploy nginx deployment and a Nodeport service

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Service
metadata:
  name: web-service
spec:
  ports:
  - name: http
    port: 80
  selector:
    app: web
  type: NodePort
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: web-deployment
spec:
  replicas: 2
  selector:
    matchLabels:
      app: web
  template:
    metadata:
      labels:
        app: web
    spec:
      containers:
      - image: nginx:1.14.2
        name: nginx
        ports:
        - containerPort: 80
EOF

Validate the deployment and service

kubectl get all

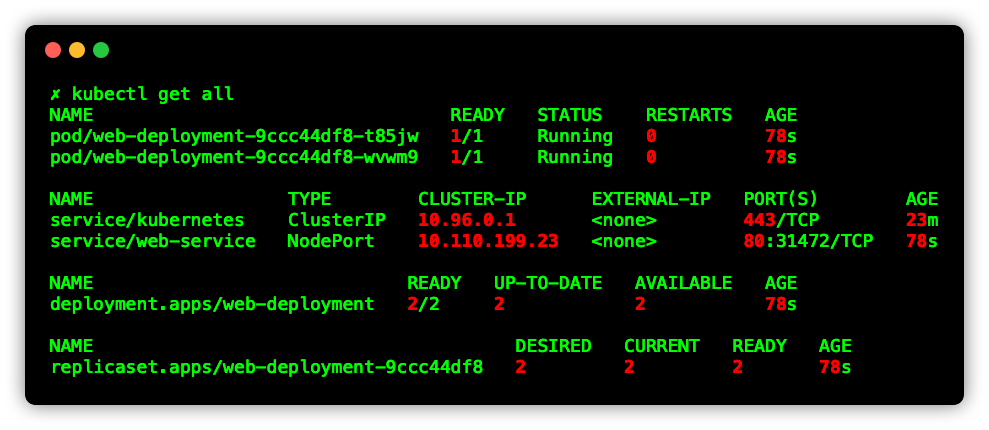

You should see an output as shown below.

Validate Minikube Setup on MAC M1/M2

To validate the networking, get the service URL using the following command. It will give you the node IP with NodePort in URL format.

minikube service web-service --url

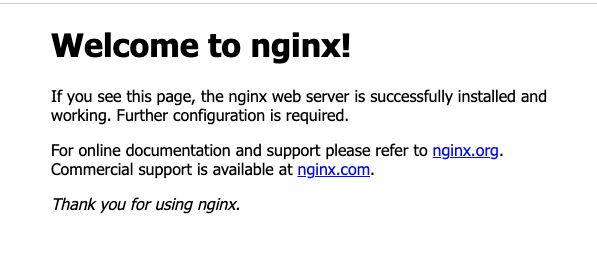

Access the URL and you should be able to view the Nginx home page as shown below

Minikube Qemu Issues Issues

If you don’t have socket_vmnet running with Qemu and if you try to access Minikube service URLs, you will get the following error.

To rectify this, install the socket_vmnet using the commands given in step 2 under the setup guide.

❌  Exiting due to MK_UNIMPLEMENTED: minikube service is not currently implemented with the builtin network on QEMU, try starting minikube with '--network=socket_vmnet'

Conclusion

If you are new to Minikube, check out my Minikube tutorial where I have added all the required steps to get you started with a development Kubernetes cluster.

If you are learning Kubernetes, check out the Kubernetes learning path and Kubernetes tutorials for beginners.
